Silencing Snoring through advanced technology

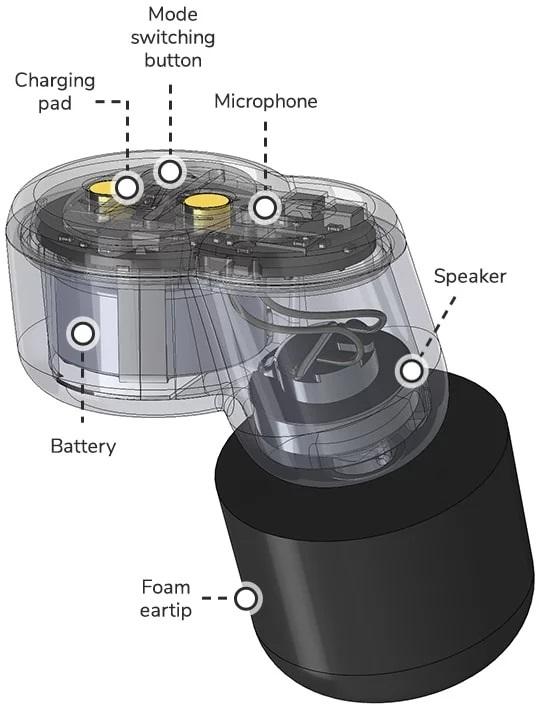

HIGH TECH BUT TINY

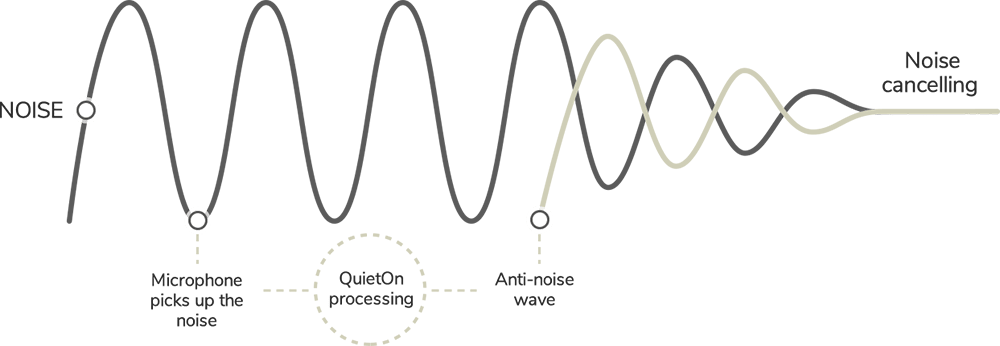

How does ANC (Active Noise Cancelling) work?
- Firstly the microphone takes a sample of the surrounding noise, in our case snoring.
- Next, the tiny active electronics inside the earbud creates a phase-shifted and equalized sound.
- The phase-shifted sound is then played through the speaker into the ear which cancels the original noise.
The energy for the device is provided by a re-chargeable battery and the soft memory foam ear tip ensures a comfortable and tight fit into the ear to maximise the passive noise cancelling effect.
QuietOn provides optimal noise reduction across the whole audible spectrum, however they are most effective for low frequency sounds such as snoring or ambient sounds coming through walls.
NOISE CANCELLING TECHNOLOGY
Active Noise Control (ANC), Active Noise Cancelling, and Active Noise Reduction (ANR) are all methods where an unwanted sound is reduced by adding another sound specifically made to cancel it out. The graph above shows how this works to neutralise the annoying sounds of snoring.
ACTIVE NOISE CANCELLING VS NOISE MASKING

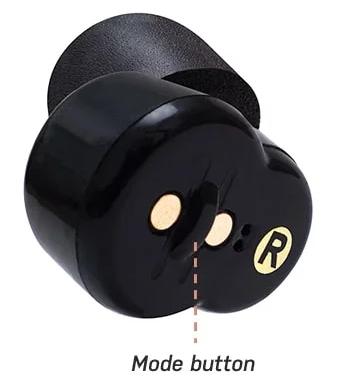

SILENCING & HEARING MODE
QuietOn Sleep includes the option to switch between the silencing and the hearing mode.
When using the hearing mode, you can communicate with others and there is no attenuation.
When the sound level exceeds the harmful level, the hearing mode starts to reduce volume and passive attenuation starts to take effect. The active attenuation is not used in the hearing mode.
In silencing mode, both active and passive attenuation are in use.

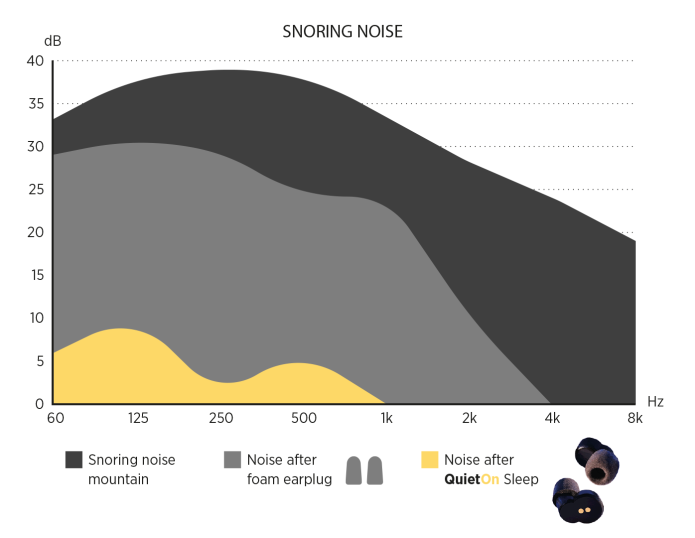

SNORING FREQUENCIES
SNORING NOISE MOUNTAIN
The dark grey shaded area shows the noise that you can hear such as snoring or other distracting noises.
NOISE AFTER FOAM EARPLUG
The mid grey shaded area shows the amount of noise reduction that is afforded by using standard foam earplugs to try and block the sound
NOISE AFTER QUIETON EARBUDS
The yellow shaded area shows the massive reduction in snoring noise that can be heard after using Noise Cancelling Technology.

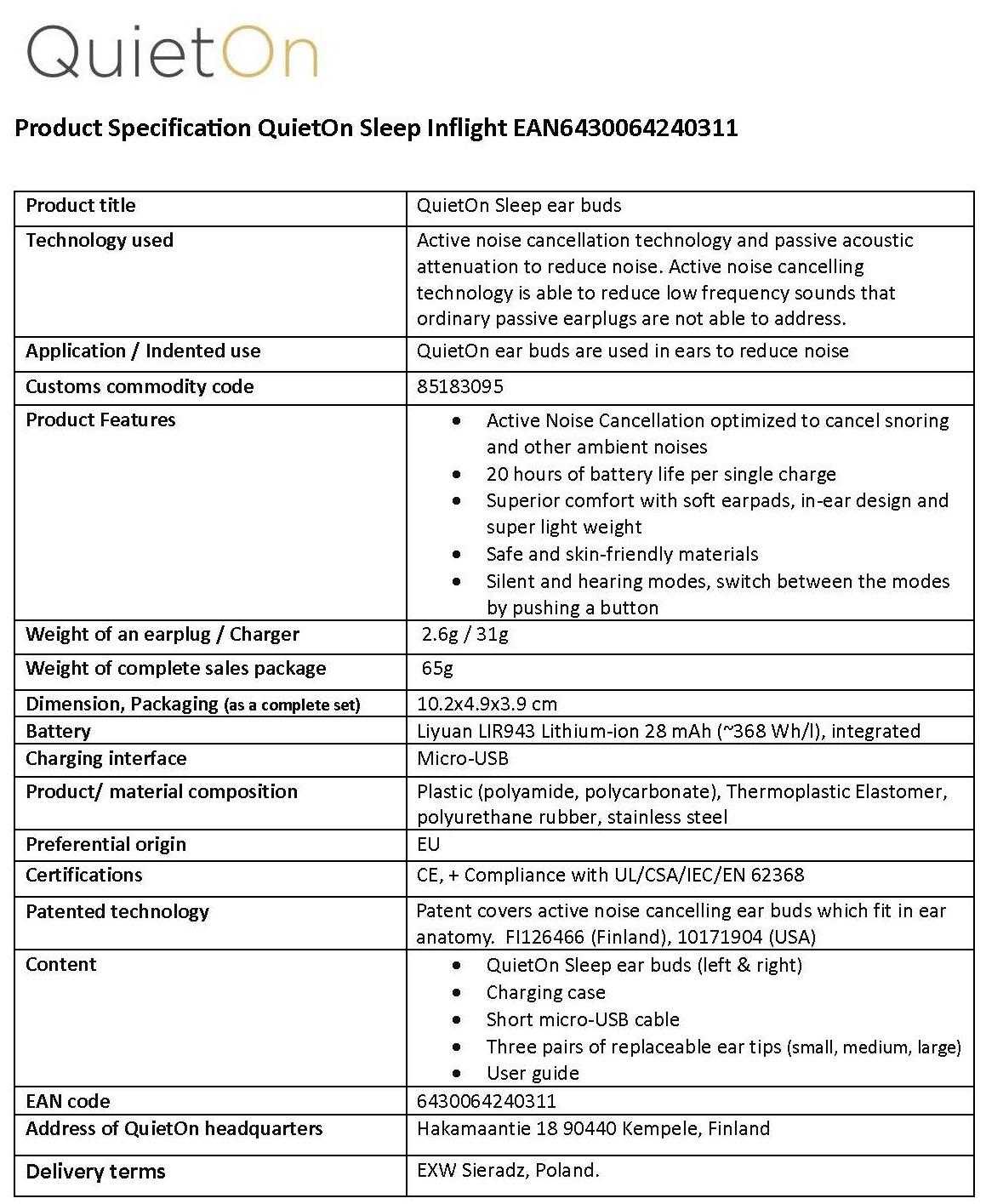

PRODUCT SPECIFICATIONS
